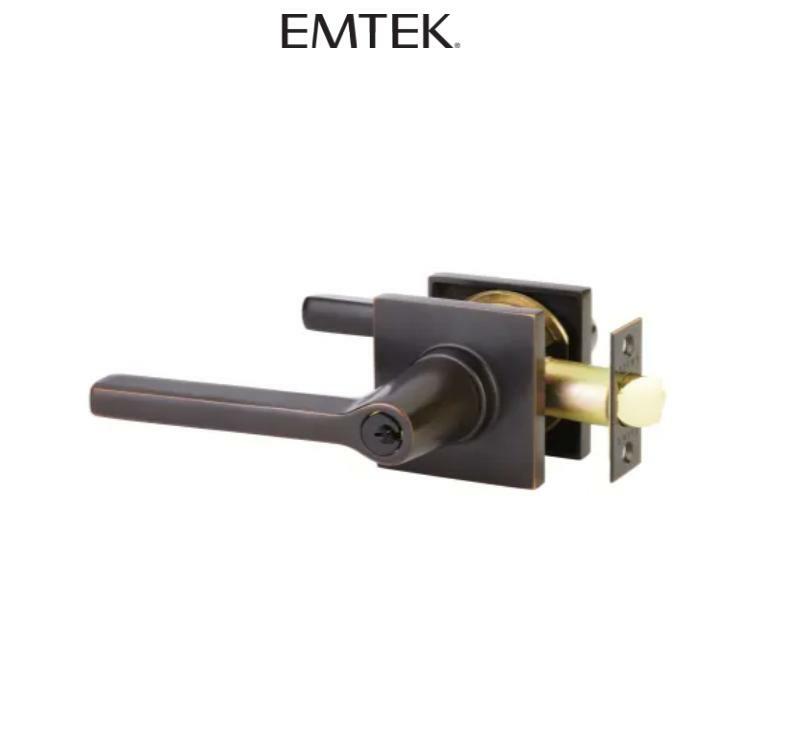

Emtek 5122HLOUS10BLH Helios LH Single Cylinder Keyed Entry Door Lever SQ RoseORB
Emtek 5122HLOUS10BLH Helios LH Single Cylinder Keyed Entry Door Lever SQ RoseORB
Low stock: 1 left
Emtek 5122HLOUS10BLH Helios LH Single Cylinder Keyed Entry Door Lever SQ RoseORB
Emtek's single cylinder leversets use traditional American locks, complete with a variety of trim styles, handcrafted from authentic materials. The leverset is operated by a key from the exterior, and a thumbturn from the interior. Uncompromisingly rugged and beautifully crafted, these locks are suitable for the very finest homes.
The Brass Modern Collection's knob / lever handles are supported by springs mounted behind the rosettes and sideplates, which return the handles back to the rest position and prevent lever sag. The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates "handle wobble" when tightened. Emtek's threaded tubes are machined brass to ensure good threads and prevent corrosion.
Single Cylinder Keyed Entry:
Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Features:
- Constructed from solid brass for a heavy duty feel and lasting durability
- Includes all necessary hardware for easy installation
- Covered by Emtek's limited lifetime mechanical manufacturer warranty
Product Technologies:
- Solid Brass Construction: This product begins with raw bars of solid brass which are heated and pounded into specially made dies - producing a stronger, more substantial, product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands - solid brass is heavier, smoother, and naturally resists corrosion.
Specifications:
- Backset: 2-3/4" or 2-3/8"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-1/4" to 2-1/16"
- Handing: Left
- Handle Length: 4-3/4"
- Handle Projection: 2-3/4"
- Product Weight: 5.00 lbs.
- Latch Faceplate: Round Corner or Square Corner
- Cylinder: 5 Pin Schlage C
